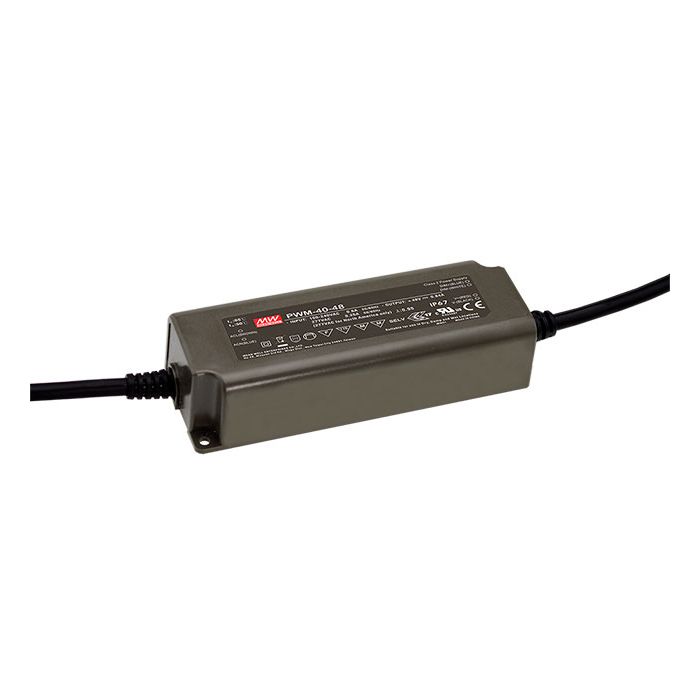

Mean Well PWM-40 Series LED Driver 40W, 12V – 48V

As low as £34.19
In stock
Part No
PWM-40-S

Universal AC input / Full range (up to 305VAC)

Built-in active PFC function

Constant voltage PWM style output

Built-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)

Dimming range : 0 - 100%

High efficiency up to 90%

Protections: Short circuit / Over load / Over voltage / Over temperature

Class II power unit, no FG

Class 2 power unit

Suitable for dry / damp / wet locations

No load power consumption

5 years warranty

More Information
Output Wattage (W)40
Output VoltageChoose Option
Dimensions150x 53x 35mm
EMC StandardsCompliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A
Safety StandardsUL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved.
Output Voltage OptionsSingle
Working Temperature-10°C~+60°C
PDF DatasheetPWM-40-SPEC_3.PDF
Return period14 days
