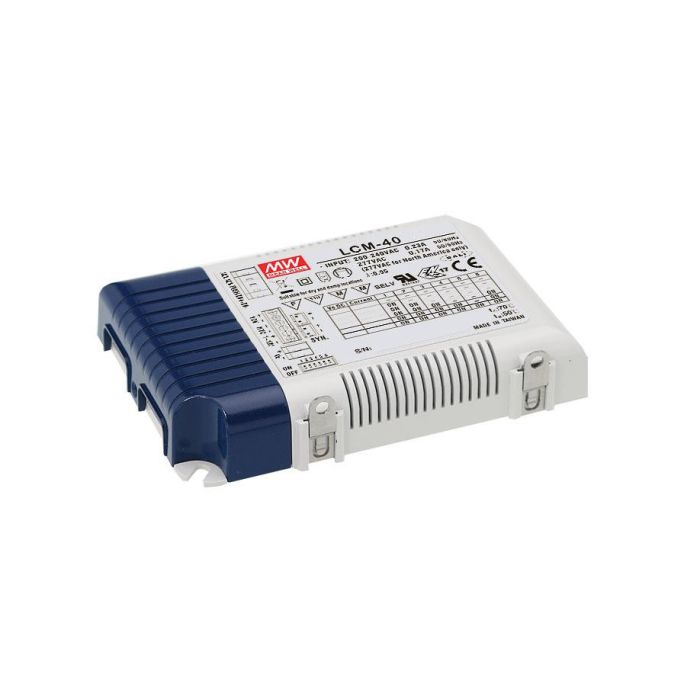

Mean Well LCM-40 Selectable Current LED Driver 40W

£34.32
In stock
Part No
lcm-40

Built-in 0~10Vdc or PWM signal dimming function

Output current level selectable by DIP S.W. 350-1050mA

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature

Other features:

  • 180~295VAC input only
  • Cooling by free air convection
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W@AC always on
  • Fully isolated plastic case
  • Class power unit, no FG
  • Built-in 12V/50mA auxiliary output
  • Suitable for LED lighting applications
  • Power supplies synchronization function up to 10 units
  • 3 years warranty
More Information
Manufacturer Mean Well
Output Wattage (W) 40
Output Current Choose Option
Dimmable (Type) 0~10Vdc & PWM signal
Output Voltage Range (V) 2-100
Dimensions 123.5x 81.5x 23 (LxWxH) mm
EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A
Input Voltage 180~295VAC 254~417VDC
Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved
Working Temperature -40~+85°C (Refer to derating curve)
PDF Datasheet LCM-40-spec_3.pdf
