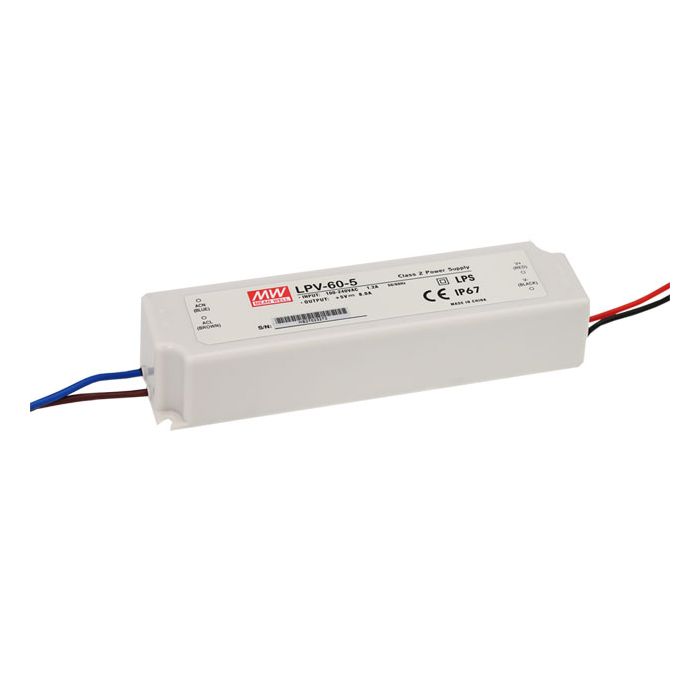

Mean Well LPV-60 Series LED Driver 40W - 60W 5V – 48V

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
RRP £21.60
£20.10
Availability: In stock
Part No
LPV-60-S
More Information
Manufacturer Mean Well
Output Wattage (W) 60
Output Voltage Choose Option
Dimensions 162.5 x 42.5 x 32
EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage 90~264VAC
Safety Standards Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options Single
Working Temperature -30°C~+70°C
PDF Datasheet LPV-60-SPEC.PDF

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
