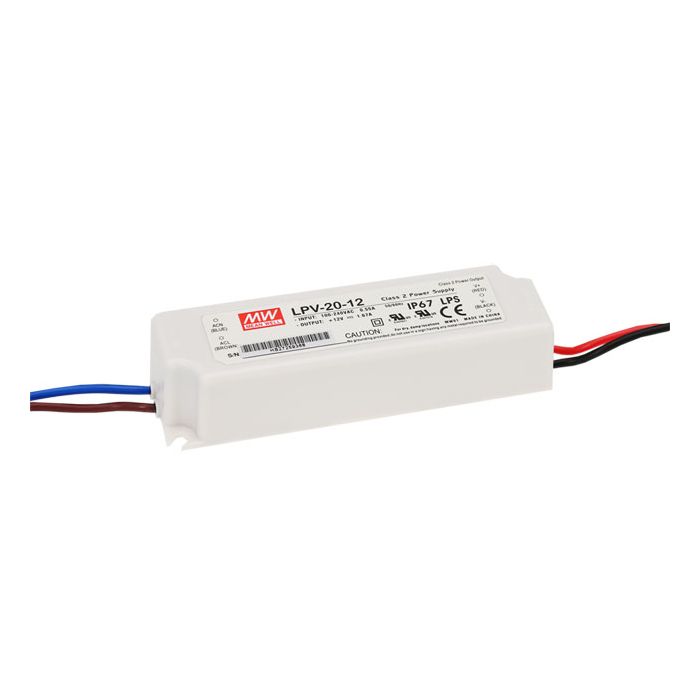

Mean Well LPV-20 Series LED Driver 15W - 20W 5V – 24V

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
RRP £14.40
£11.17
Availability: In stock
Part No
LPV-20-S
More Information
Manufacturer Mean Well
Output Wattage (W) 20
Output Voltage Choose Option
Dimensions 118 x 35 x 26
EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage 90~264VAC
Safety Standards UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options Single
Working Temperature -30°C~+70°C
PDF Datasheet LPV-20-SPEC.PDF

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
