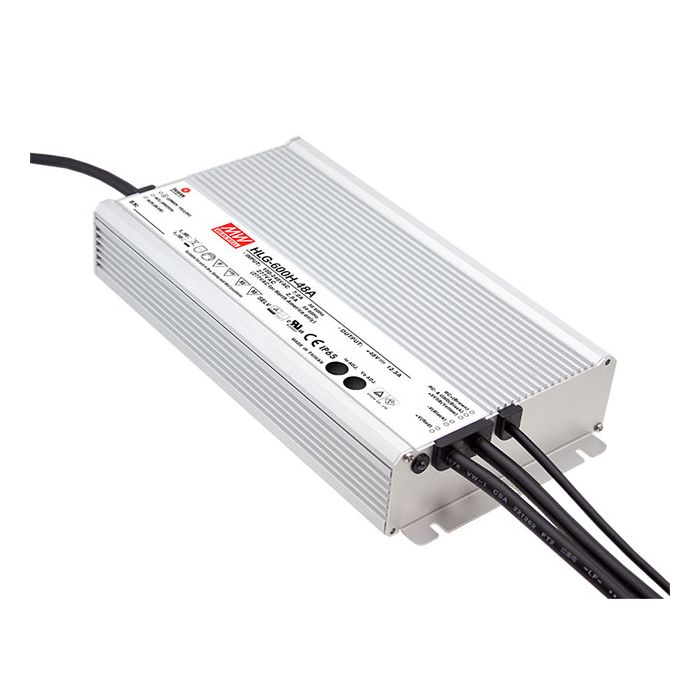

Mean Well HLG-600H Series LED Driver 480W - 605W 12V – 54V
As low as
£235.22
£196.02
In stock
Part No
HLG-600H-S
Output voltage and C.C level can be adjusted through internal potentiometer
IP65 design for indoor or outdoor installations
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Built-in active PFC function, PF>0.9 for 60% of load or higher
- 5 years warranty
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 600 |
| Dimmable (Type) | Choose Option |
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (≧50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A |
| Input Voltage | 90~305VAC 127~431VDC |
| Safety Standards | UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67 |
| Output Voltage Options | Single |
| Working Temperature | -40~+70°C |
| PDF Datasheet | HLG-600H-spec_17.pdf |
