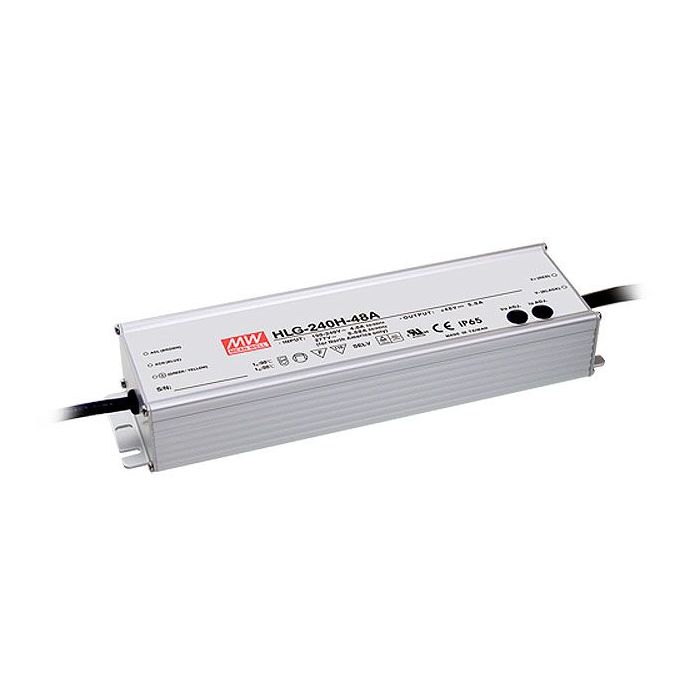

Mean Well HLG-240H B Series IP67 Rated LED Driver 192W - 240W 12V – 54V

From £92.00 £76.67
In stock
Part No
HLG-240H-BS

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

IP67 design for indoor or outdoor installations

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Multiple models for choice:
  • Built-in active PFC function, PF>0.9 for 60% of load or higher
  • 5 years warranty
More Information
BrandMean Well
Output Wattage (W)240
Dimmable (Type)1-10VDC, PWM signal, resistance
DC Output Adjustment+/-6% rated output voltage
Dimensions244.2 x 68 x 38.8 (LxWxH) Mm
EMC StandardsEN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage90~305VAC, 127~431VDC
Safety StandardsUL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
Output Voltage OptionsSingle
Working Temperature-40~+70°C
PDF DatasheetHLG-240H-spec.pdf
Item ReturnsThis item can be returned

Details

default

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

IP67 design for indoor or outdoor installations

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Multiple models for choice:
  • Built-in active PFC function, PF>0.9 for 60% of load or higher
  • 5 years warranty

More Information

More Information
BrandMean Well
Output Wattage (W)240
Dimmable (Type)1-10VDC, PWM signal, resistance
DC Output Adjustment+/-6% rated output voltage
Dimensions244.2 x 68 x 38.8 (LxWxH) Mm
EMC StandardsEN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage90~305VAC, 127~431VDC
Safety StandardsUL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1
Output Voltage OptionsSingle
Working Temperature-40~+70°C
PDF DatasheetHLG-240H-spec.pdf
Item ReturnsThis item can be returned
