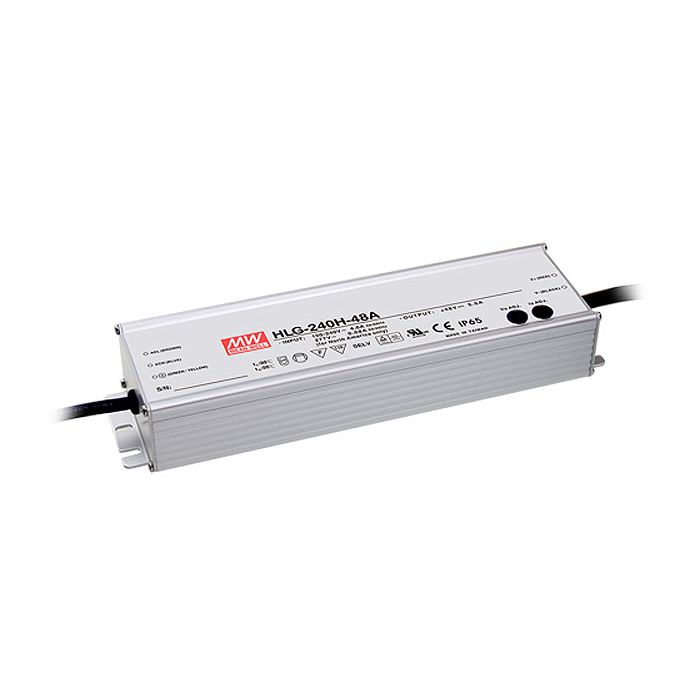

Mean Well HLG-240H A Series LED Driver 192W - 240W 12V – 54V
As low as
£95.98
£79.98
In stock
Part No
HLG-240H-SA
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Multiple models for choice:
- Built-in active PFC function, PF>0.9 for 60% of load or higher
- IP65 rated
- 5 years warranty
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 240 |
| Dimmable (Type) | No |
| DC Output Adjustment | +/-6% rated output voltage |
| Dimensions | 244.2 x 68 x 38.8 |
| EMC Standards | EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Input Voltage | 90~305VAC, 127~431VDC |
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1 |
| Output Voltage Options | Single |
| Working Temperature | -40~+70°C |
| PDF Datasheet | HLG-240H-spec_7.pdf |
