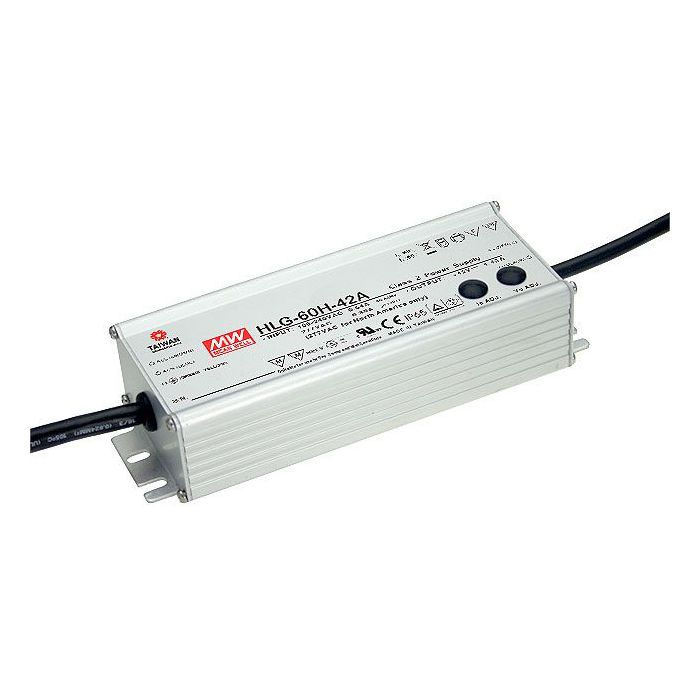

Mean Well HLG-60HB Series IP67 Rated LED Driver 60W 15V – 54V

As low as £37.97
In stock
Part No
HLG-60H-BS

IP67 design for indoor or outdoor installations

Built-in active PFC, PF>0.9 for 60% of load or higher

5 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 90.5%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for dry, damp and wet location
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Class 2 power unit
  • IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information
Manufacturer Mean Well
Output Wattage (W) 60
Dimmable (Type) 1-10VDC, PWM signal, resistance
EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage 90~305VAC, 127~431VDC
Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
Output Voltage Options Single
Working Temperature -40~+70°C
PDF Datasheet HLG-60H-spec.pdf

IP67 design for indoor or outdoor installations

Built-in active PFC, PF>0.9 for 60% of load or higher

5 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 90.5%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for dry, damp and wet location
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Class 2 power unit
  • IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
