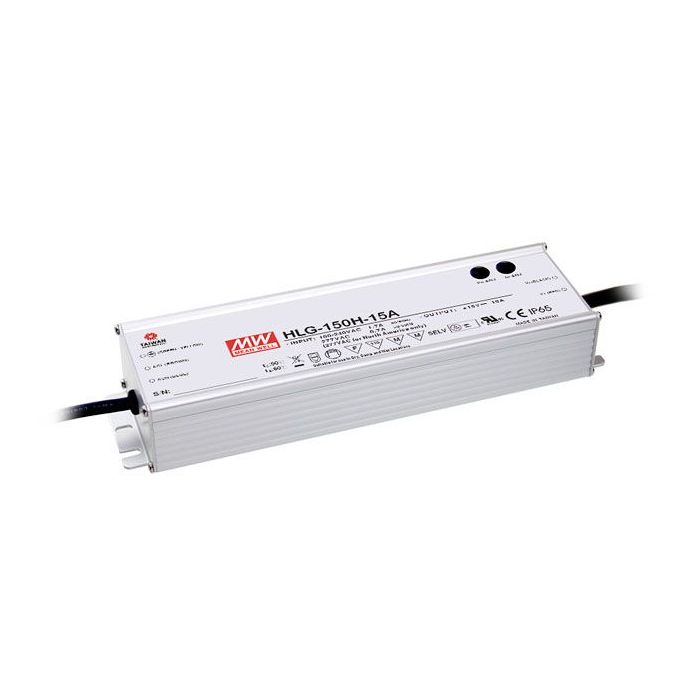

Mean Well HLG-150H B Series Dimmable IP67 Rated LED Driver 150W 12V – 54V

Be the first to review this product
As low as £69.20 £57.67
In stock
Part No
HLG-150H-BS

IP67 design for indoor or outdoor installations

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

5 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Optional CQC models available
  • Built-in active PFC, PF>0.9 for 60% of load or higher
More Information
Brand Mean Well
Output Wattage (W) 150
Dimmable (Type) AC phase-cut
DC Output Adjustment +/-10% rated output voltage
Dimensions 228 x 68 x 38.8mm
EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage 90~305VAC, 127~431VDC
Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1
Output Voltage Options Single
Working Temperature -40~+70°C
PDF Datasheet HLG-150H-spec.pdf
