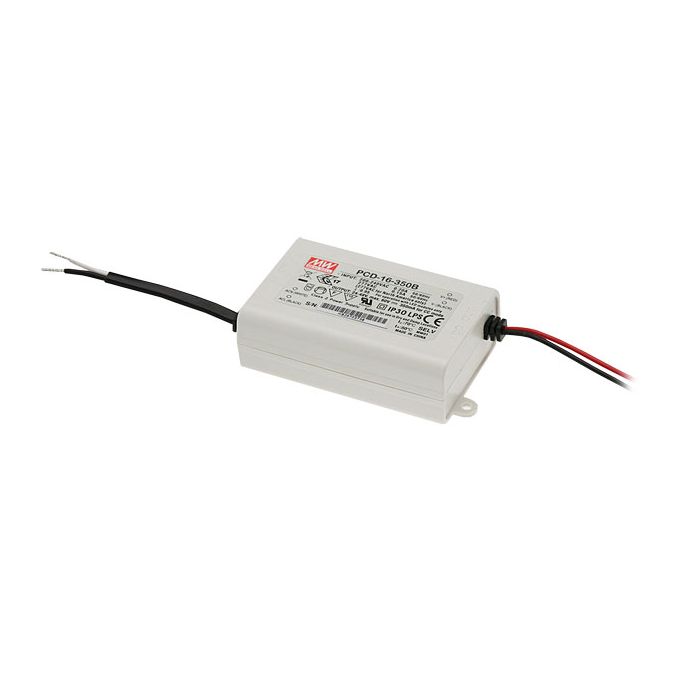

Mean Well PCD-16 Series LED Driver 16W 350mA – 1400mA

As low as £17.87
In stock
Part No
PCD-16-S

AC phase-cut dimming

Constant current design

Protections: Short circuit/ Over temperature

Other features:

  • 180~295VAC input
  • Fully isolated plastic case
  • Built-in active PFC function
  • IP30 design
  • Class 2 power unit/ Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 3 years warranty
More Information
Manufacturer Mean Well
Output Wattage (W) 17
Output Current Choose Option
Dimmable (Type) AC phase-cut
Output Voltage Range (V) 16~24
Dimensions 84x 57x 29.5
EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Input Voltage 180~295VAC
Safety Standards UL8750, ENEC EN61347-2-13 approved
Output Voltage Options Single
Working Temperature -30~+50°C (refer to output derating curve)
PDF Datasheet PCD-16-spec_3.pdf

AC phase-cut dimming

Constant current design

Protections: Short circuit/ Over temperature

Other features:

  • 180~295VAC input
  • Fully isolated plastic case
  • Built-in active PFC function
  • IP30 design
  • Class 2 power unit/ Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 3 years warranty
