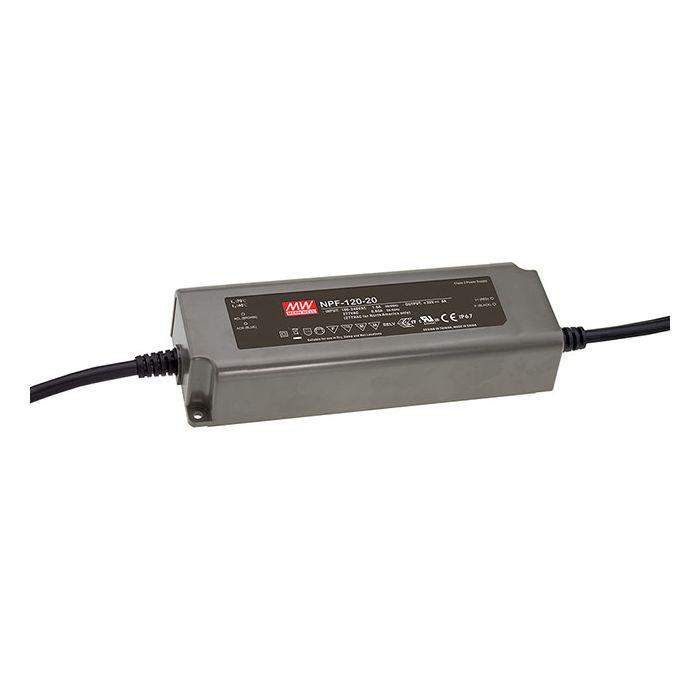

Mean Well NPF-120 Series IP67 Rated LED Driver 2.3-10A 120-124W
As low as
£53.18
£44.32
In stock
Part No
NPF-120-S
Fully encapsulated with IP67 level
Protections: Short circuit/ Over Current/ Over voltage/ Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full Range
- High efficiency up to 90.5%
- Cooling by free air convection
- Built-in active PFC function
- Fully isolated plastic case
- Class II power unit, no FG
- Suitable for dry, damp, wet location
- No load power consumption <0.15W
- 5 years warranty
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 120 |
| Output Voltage | Choose Option |
| Dimensions | 191x 63x 37.5 |
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. |
| Input Voltage | 90-305VAC |
| Safety Standards | UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 |
| Output Voltage Options | Single |
| Working Temperature | -40-+80°C |
| PDF Datasheet | NPF-120-spec.pdf |
