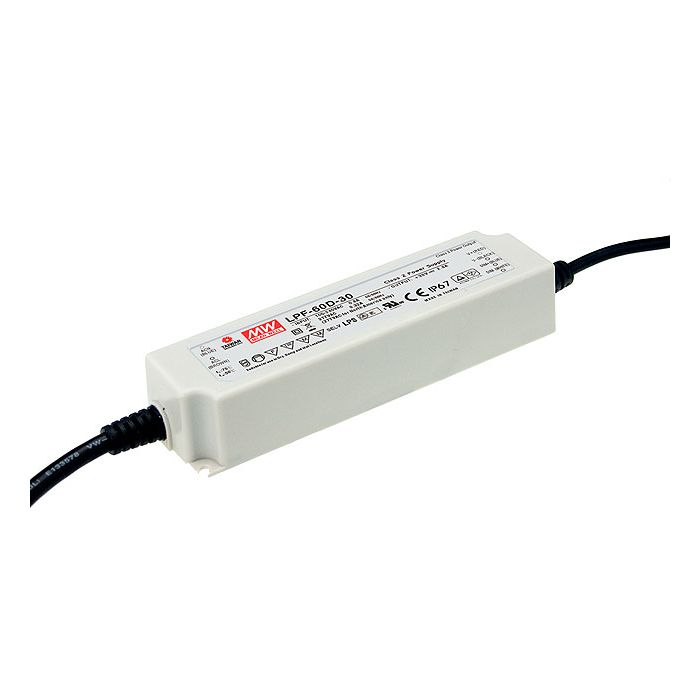

Mean Well LPF-60D Series Dimmable LED Driver 60W 12V – 54V
As low as
£35.71
£29.76
In stock
Part No
LPF-60D-S
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full Range
- Built-in active PFC function
- Fully isolated plastic case
- Isolation class II, no F.G.
- Class 2 power unit
- Suitable for dry, damp, wet location
- 5 years warranty
| Output Wattage (W) | 60 |
|---|---|
| Output Voltage | Choose Option |
| Dimensions | 162 x 43.5 x 32 |
| EMC Standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 |
| Input Voltage | 90~305VAC; 127~431VDC |
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 |
| Output Voltage Options | Single |
| Working Temperature | -10~+60°C |
| PDF Datasheet | LPF-60D-spec_9.pdf |
