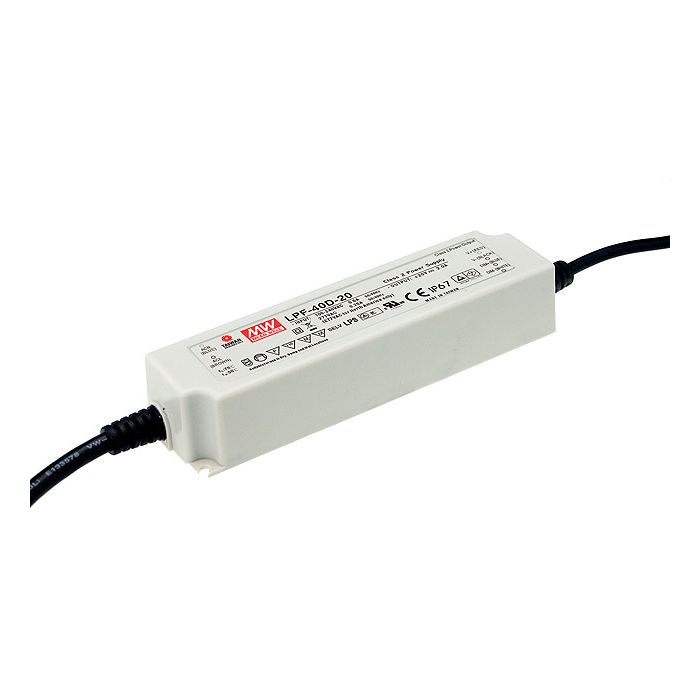

Mean Well LPF-40D Series Dimmable LED Driver 40W 12V – 54V

From £33.22 £27.68
In stock
Part No
LPF-40D-S

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC)  / Full Range
  • Built-in active PFC function
  • Fully isolated plastic case
  • Isolation class II, no F.G.
  • Class 2 power unit
  • Suitable for dry, damp, wet location
  • 5 years warranty
More Information
Output Wattage (W)40
Output VoltageChoose Option
DC Output AdjustmentN/A
Dimensions162 x 43.5 x 32
EMC StandardsEN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Input Voltage90~305VAC; 127~431VDC
Safety StandardsUL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage OptionsSingle
Working Temperature-40~+70°C (refer to output derating curve)
PDF DatasheetLPF-40D-spec_9.pdf
Return period14 days

Details

default

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC)  / Full Range
  • Built-in active PFC function
  • Fully isolated plastic case
  • Isolation class II, no F.G.
  • Class 2 power unit
  • Suitable for dry, damp, wet location
  • 5 years warranty

More Information

More Information
Output Wattage (W)40
Output VoltageChoose Option
DC Output AdjustmentN/A
Dimensions162 x 43.5 x 32
EMC StandardsEN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Input Voltage90~305VAC; 127~431VDC
Safety StandardsUL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage OptionsSingle
Working Temperature-40~+70°C (refer to output derating curve)
PDF DatasheetLPF-40D-spec_9.pdf
Return period14 days
