Part No
LPF-16DS
Availability: In stock

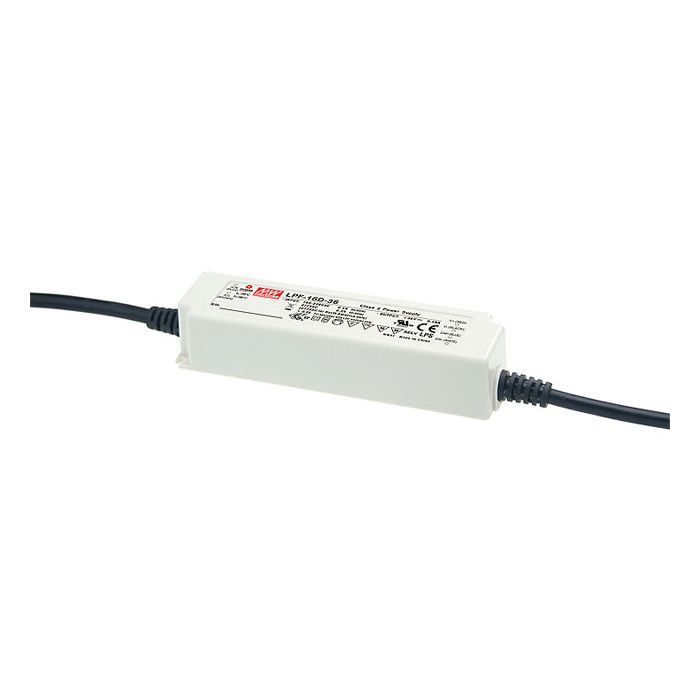

Mean Well LPF-16D Series Dimmable LED Driver 16W 12V – 54V

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC)  / Full Range
  • Fully isolated plastic case with IP30 level
  • Isolation class II, no F.G.
  • Class 2 power unit
  • Suitable for dry, damp, wet location
  • 5 years warranty
  • Technical Spec
  • More Information
  • Free Product Matching
  • Delivery Information
Technical Spec
More Information
Output Wattage (W) 16
Output Voltage Choose Option
Dimensions 148 x 40 x 30
EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage 90~305VAC; 127~431VDC
Safety Standards Design refer to UL8750 ENEC EN61347-1, EN61347-2-13
Output Voltage Options Single
Working Temperature -40~+70°C (refer to output derating curve)
More Information

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC)  / Full Range
  • Fully isolated plastic case with IP30 level
  • Isolation class II, no F.G.
  • Class 2 power unit
  • Suitable for dry, damp, wet location
  • 5 years warranty
