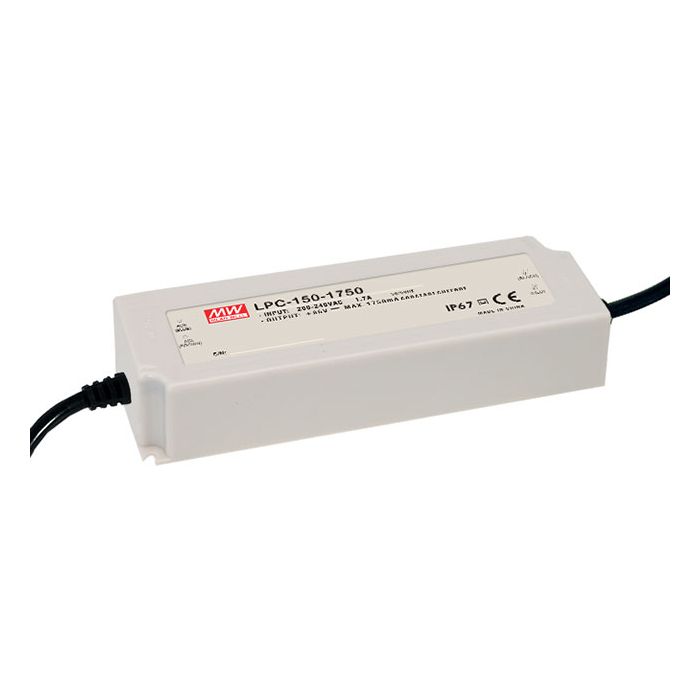

Mean Well LPC-150 Series IP67 Rated LED Driver 350-3150mA 150W

As low as £40.01
In stock
Part No
LPC-150-S

Constant current design

Protections: Short circuit / Over voltage / Over temperature

  • High efficiency up to 90%
  • Cooling by free air convection
  • Fully encapsulated with IP67 level
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for LED lighting and moving sign application
  • 100% full load burn-in test
  • Low Cost, High reliability
  • 2 years warranty
More Information
BrandMean Well
Output Wattage (W)150
Output Current (mA)Choose Option
Dimmable (Type)No
Dimensions191x 63x 37.5
EMC StandardsCompliance to EN55022(CISPR22) Class B; EN61000-3-2 Class A (<80% load); EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
Input Voltage180-305VAC
Safety StandardsIP67 approved, refer to EN60950-1
Output Voltage OptionsSingle
Working Temperature-25°C-+50°C
PDF DatasheetLPC-150-spec.pdf

Constant current design

Protections: Short circuit / Over voltage / Over temperature

  • High efficiency up to 90%
  • Cooling by free air convection
  • Fully encapsulated with IP67 level
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for LED lighting and moving sign application
  • 100% full load burn-in test
  • Low Cost, High reliability
  • 2 years warranty
