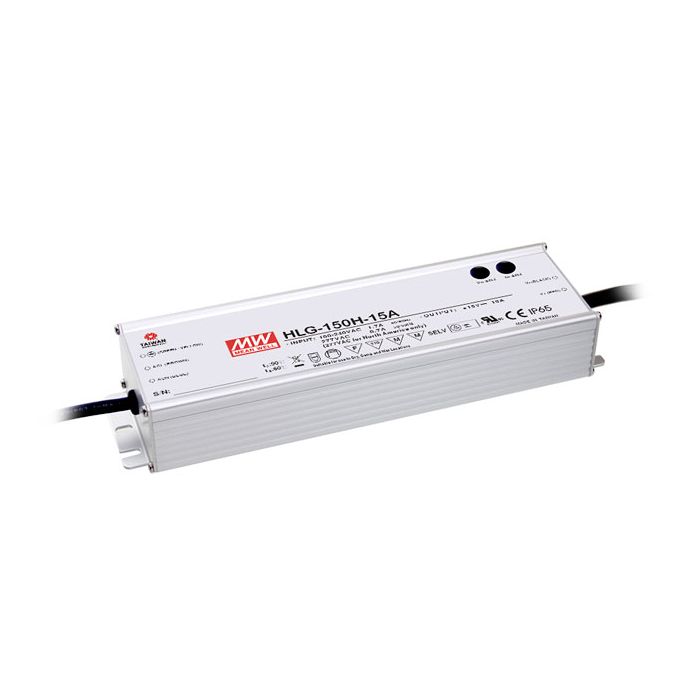

Mean Well LED Driver HLG-150H-12A 150W 12V
£62.65
£52.21
Out of stock
Part No
HLG-150H-12A
IP65 design for indoor or outdoor installations
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Optional CQC models available
- Output voltage and C.C level can be adjusted through internal potentiometer
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 150 |
| Output Voltage | 12V |
| DC Output Adjustment | +/-10% rated output voltage |
| Dimensions | 228 x 68 x 38.8mm |
| EMC Standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Input Voltage | 90~305VAC, 127~431VDC |
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 |
| Output Voltage Options | Single |
| Working Temperature | -40~+70°C | PDF Datasheet | HLG-150H-spec_9.pdf |
