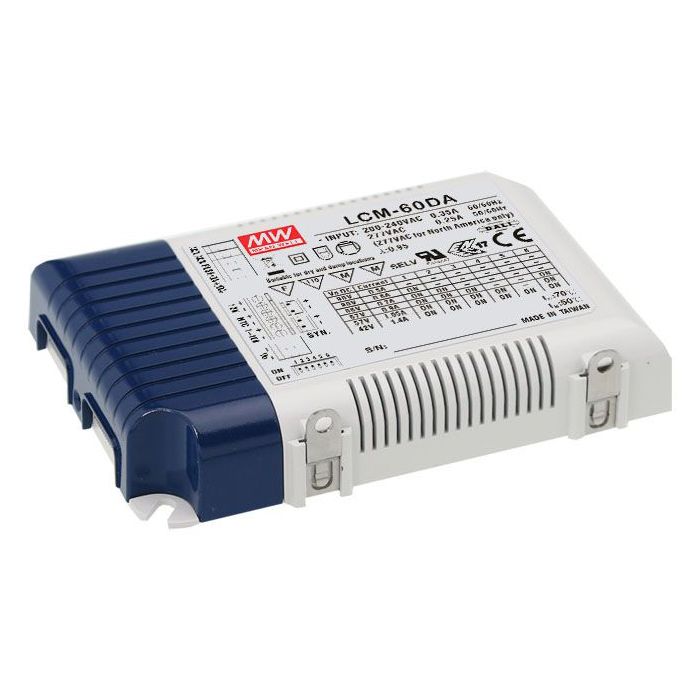

Mean Well LCM Series LED Driver 25W - 60W 350-500~1050-1400mA
From
£47.90
£39.92
In stock
Part No
LCM-S
Built-in DALI interface and push dimming function
Output current level selectable by DIP S.W.
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Other features:
- 180~295VAC input only
- Cooling by free air convection
- Temperature compensation function by external NTC
- No load power consumption <1.2W@AC always on
- Fully isolated plastic case
- Class power unit, no FG
- Built-in 12V/50mA auxiliary output
- Suitable for LED lighting applications
- Power supplies synchronization function up to 10 units
- 3 years warranty
| Dimensions | 123.5x 81.5x 23 |
|---|---|
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A |
| Input Voltage | 180~295VAC 254~417VDC |
| Safety Standards | UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved |
| Output Voltage Options | Single |
| Working Temperature | -40~+85°C |
| PDF Datasheet | LCM-60DA-spec_3.pdf |
| Item Returns | This item can be returned |
