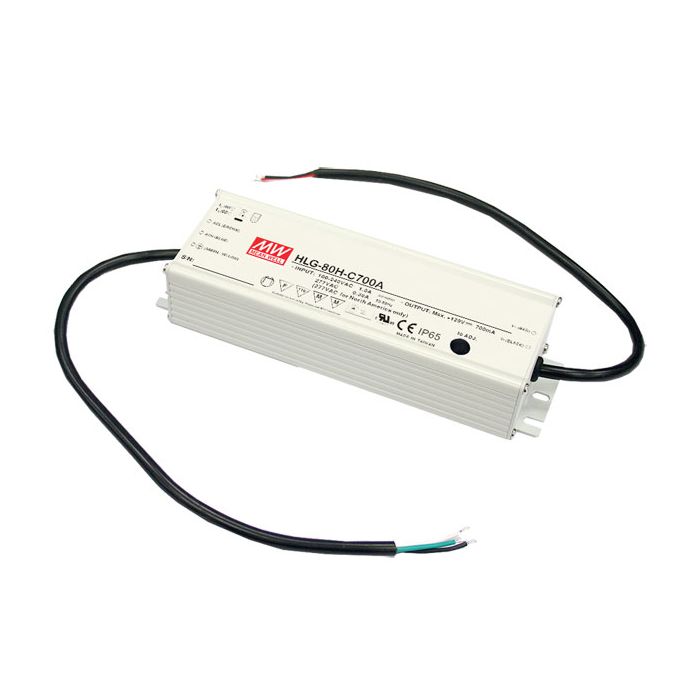

Mean Well HLG-80H A Series LED Driver 80W 12V – 54V
As low as
£57.41
£47.84
In stock
Part No
HLG-80H-S
The Mean Well HLG-80H-A Series LED Driver is IP65 rated and designed for indoor or outdoor installations. Ideal for indoor LED lighting as well as LED street lighting these drivers come complete with a 5 year warranty.
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 94%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for dry, damp and wet location
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Class 2 power unit
- Output voltage and C.C level can be adjusted through internal potentiometer
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 80 |
| Dimmable (Type) | 1-10VDC, PWM signal, resistance |
| DC Output Adjustment | +/-10% rated output voltage |
| Dimensions | 195.6x 61.5x 38.8 |
| EMC Standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 |
| Input Voltage | 90~305VAC, 127~431VDC |
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1 |
| Output Voltage Options | Single |
| Working Temperature | -40~+50°C (refer to output derating curve) |
| PDF Datasheet | HLG-80H-spec.pdf |
