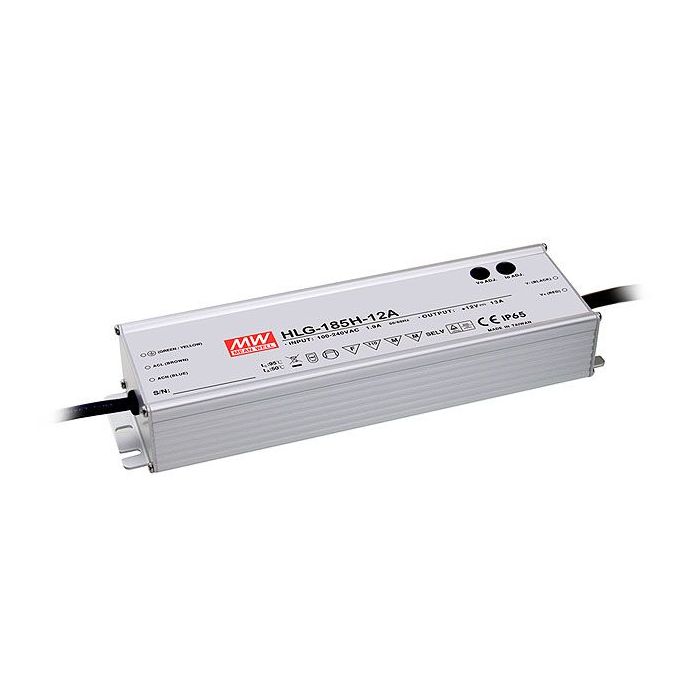

Mean Well HLG-185HB Series IP67 Rated LED Driver 156W – 186W 12V – 54V
IP67 design for indoor or outdoor installations
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Optional CQC models available
- IP67rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information| Brand | Mean Well |
|---|
| Output Wattage (W) | 185 |
|---|
| Dimmable (Type) | 1-10VDC, PWM signal, resistance |
|---|
| Dimensions | 228 x 68 x 38.8 (LxWxH) mm |
|---|
| EMC Standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
|---|
| Input Voltage | 90~305VAC, 127~431VDC |
|---|
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 |
|---|
| Output Voltage Options | Single |
|---|
| Working Temperature | -40~+70°C |
|---|
| PDF Datasheet | HLG-185H-spec.pdf |
|---|
| Item Returns | This item can be returned |
|---|
Details
defaultIP67 design for indoor or outdoor installations
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Optional CQC models available
- IP67rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information
More Information| Brand | Mean Well |
|---|
| Output Wattage (W) | 185 |
|---|
| Dimmable (Type) | 1-10VDC, PWM signal, resistance |
|---|
| Dimensions | 228 x 68 x 38.8 (LxWxH) mm |
|---|
| EMC Standards | EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
|---|
| Input Voltage | 90~305VAC, 127~431VDC |
|---|
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 |
|---|
| Output Voltage Options | Single |
|---|
| Working Temperature | -40~+70°C |
|---|
| PDF Datasheet | HLG-185H-spec.pdf |
|---|
| Item Returns | This item can be returned |
|---|
