Part No
HLG-120H-S
Availability: In stock

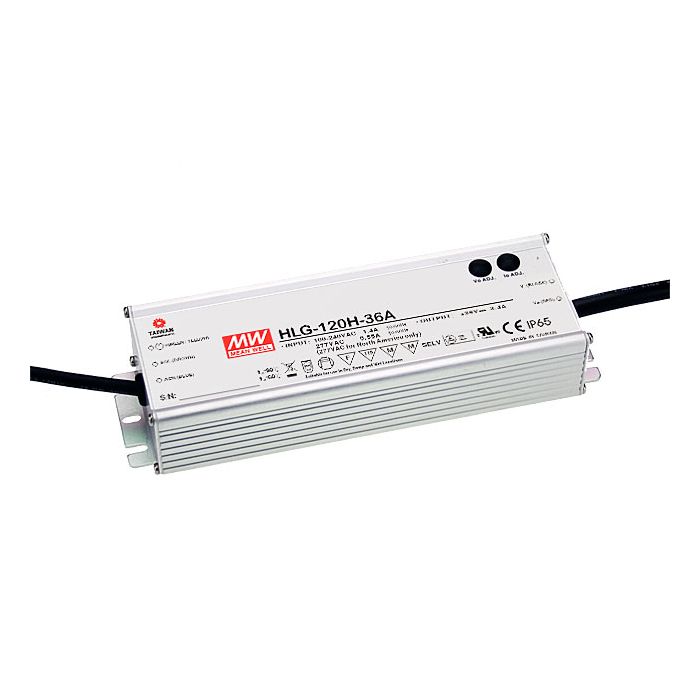

Mean Well HLG-120H Series LED Driver 120W 12V – 54V

Output voltage and constant current level can be adjusted through internal potentiometer.

IP65 rated

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 94%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for dry, damp and wet location
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Multiple models for choice:
  • IP65 Rated
  • 5 years warranty
  • Technical Spec
  • More Information
  • Free Product Matching
  • Delivery Information
Technical Spec
More Information
Manufacturer Mean Well
Output Wattage (W) 120
Dimmable (Type) Choose Option
DC Output Adjustment -0
EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage 90~305VAC, 127~431VDC
Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved
Output Voltage Options Single
Working Temperature -40~+70°C
More Information

Output voltage and constant current level can be adjusted through internal potentiometer.

IP65 rated

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 94%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for dry, damp and wet location
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Multiple models for choice:
  • IP65 Rated
  • 5 years warranty
