Part No
ELG-100-C-S
Availability: In stock

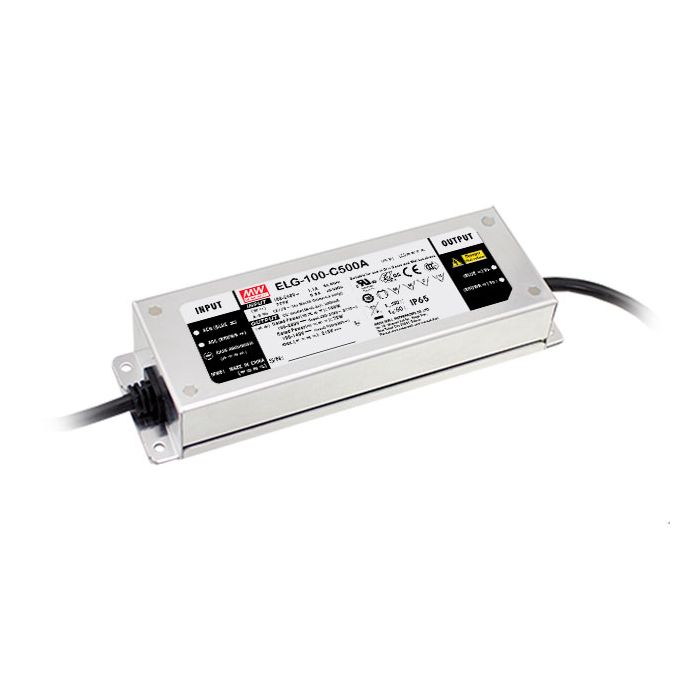

Mean Well ELG-100-C Series LED Driver 99.75-100.8W 350-1400mA

Constant current mode output

Typical lifetime>50000 hours

Protections: Short circuit/ Over Voltage/ Over temperature

Other features:

  • Built-in active PFC function
  • No load power consumption <0.5W
  • IP67 / IP65 rated design for indoor or outdoor installations
  • Metal housing design
  • 3 in 1 dimming
  • 5 years warranty
    • Technical Spec
    • More Information
    • Free Product Matching
    • Delivery Information
    Technical Spec
    More Information
    Manufacturer Mean Well
    Output Wattage (W) 100
    Output Current Choose Option
    Dimmable (Type) 3 in 1 Dimming
    Dimensions 199x 63x 35.5
    EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
    Input Voltage 100-305VAC 142-431VDC
    Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved
    Output Voltage Options Single
    Working Temperature Tcase= -40~+90°C (Refer to "OUTPUT LOAD vs TEMPERATURE")
    More Information

    Constant current mode output

    Typical lifetime>50000 hours

    Protections: Short circuit/ Over Voltage/ Over temperature

    Other features:

    • Built-in active PFC function
    • No load power consumption <0.5W
    • IP67 / IP65 rated design for indoor or outdoor installations
    • Metal housing design
    • 3 in 1 dimming
    • 5 years warranty
