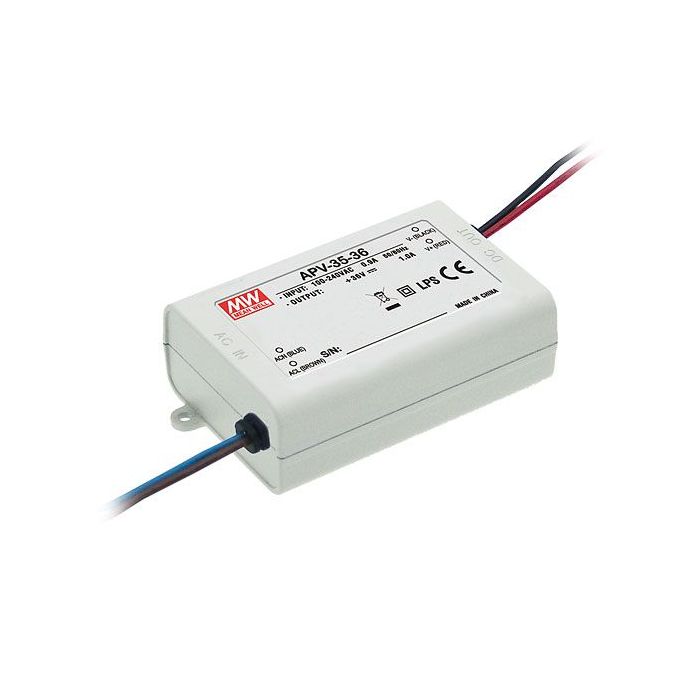

Mean Well APV-35 Series LED Driver 35W 5V – 36V

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Withstand 300VAC surge input for 5 seconds
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
RRP £19.20
£14.21
Availability: In stock
Part No
APV-35-S
More Information
Manufacturer Mean Well
Output Wattage (W) 35
Dimmable (Type) No
Dimensions 84x 57x 29.5 (LxWxH) Mm
EMC Standards EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A
Input Voltage 90~264VAC, 127VDC~370VDC
Safety Standards Design refer to EN60950-1, UL8750
Output Voltage Options Single
Working Temperature -30°C~+70°C
PDF Datasheet APV-35-spec_4.pdf

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Withstand 300VAC surge input for 5 seconds
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
