Mean Well APV-12E Series LED Power Supply 10-12W 0.5-2A

Mean Well APV-12E Series LED Power Supply 10-12W 0.5-2A

Mean Well APV-8E Series LED Power Supply 7-8.16W 0.34-1.4A

Mean Well APV-8E Series LED Power Supply 7-8.16W 0.34-1.4A

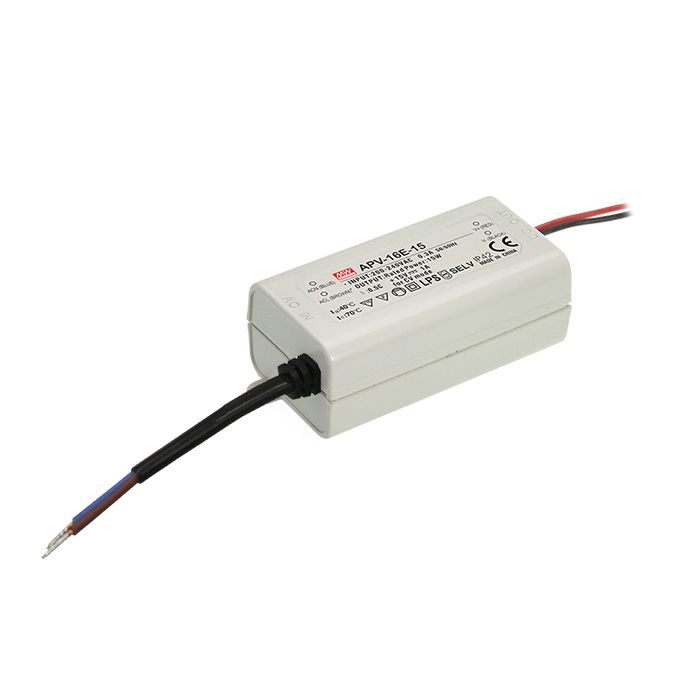

Mean Well APV-16E Series LED Power Supply 15-16W 0.67-2.6A

Constant Voltage

Fully isolated plastic case

Protections: Short circuit

Other features:

  • Small and compact size
  • No load power consumption <0.5W
  • IP42 design
  • Class II power unit, no FG
  • Cooling by free air convection
  • PF>0.5
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
RRP £11.04
£7.72
Availability: In stock
Part No
APV-16E-S

Constant Current

Fully isolated plastic case

Protections: Short circuit

Other features:

  • Small and compact size
  • No load power consumption <0.5W
  • IP42 design
  • Class II power unit, no FG
  • Cooling by free air convection
  • PF>0.5
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
More Information
Manufacturer Mean Well
Output Wattage (W) 15
Output Voltage Choose Option
Dimmable (Type) No
Dimensions 77 x 40 x 29
EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
Input Voltage 180~264VAC; 254~370VDC
Safety Standards IP42 approved; design refer to EN61347-1, EN61347-2-13
Output Voltage Options Single
Working Temperature -30~+70°C
PDF Datasheet APV-16E-spec.pdf
