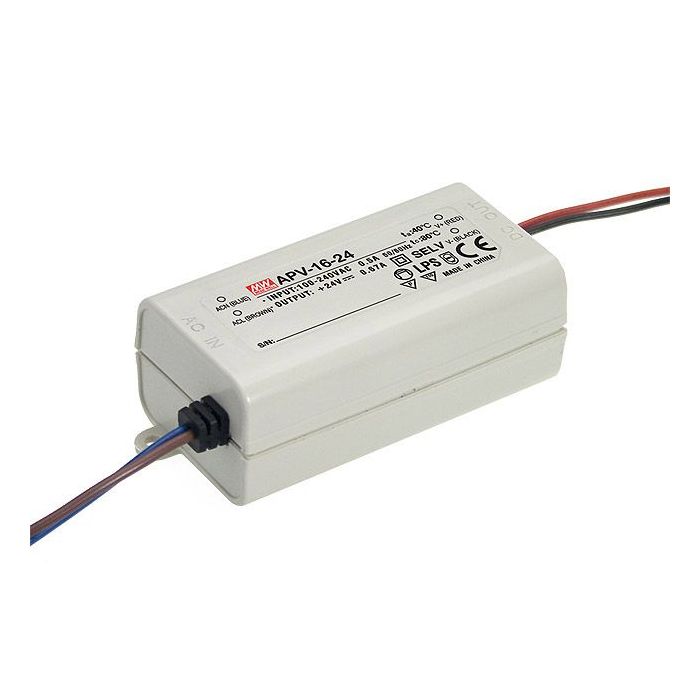

Mean Well APV-16 Series LED Driver 13W - 16W 5V-24V

From £8.54 £7.12
In stock
Part No
APV-16-S

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
More Information
BrandMean Well
Output Wattage (W)15
Dimmable (Type)No
Dimensions77 x 40 x 29 (LxWxH) mm
EMC StandardsEN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Input Voltage90~264VAC; 127~370VDC
Safety StandardsDesign refer to TUV EN60950-1, EN61347-2-13, UL8750
Output Voltage OptionsSingle
Working Temperature-30°C~+70°C
PDF DatasheetAPV-16-5_20spec.pdf
Item ReturnsThis item can be returned

Details

default

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty

More Information

More Information
BrandMean Well
Output Wattage (W)15
Dimmable (Type)No
Dimensions77 x 40 x 29 (LxWxH) mm
EMC StandardsEN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Input Voltage90~264VAC; 127~370VDC
Safety StandardsDesign refer to TUV EN60950-1, EN61347-2-13, UL8750
Output Voltage OptionsSingle
Working Temperature-30°C~+70°C
PDF DatasheetAPV-16-5_20spec.pdf
Item ReturnsThis item can be returned
