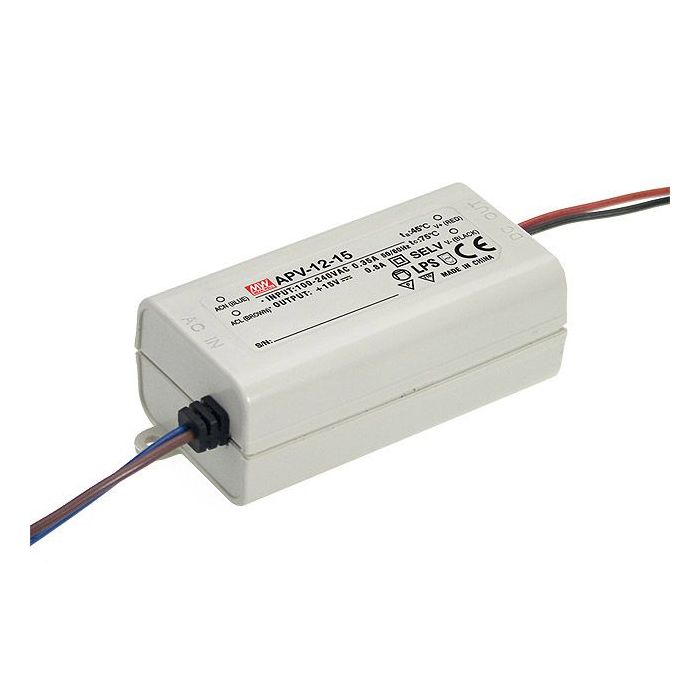

Mean Well APV-12 Series LED Driver 12W 5V – 24V
As low as
£8.34
£6.95
In stock
Part No
APV-12-S
Constant Voltage
Fully isolated plastic case
Protections: Short circuit/ Overload/ Over voltage
Other features:
- Universal AC input / Full Range
- Small and compact size
- Isolation class II, no FG
- Cooling by free air convection
- Pass LPS
- 100% full load burn-in test
- Low cost, High reliability
- 2 years warranty
| Brand | Mean Well |
|---|---|
| Output Wattage (W) | 12 |
| Dimmable (Type) | No |
| Dimensions | 77 x 40 x 29 (LxWxH) mm |
| EMC Standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Input Voltage | 90~264VAC; 127~370VDC |
| Safety Standards | Design refer to TUV EN60950-1, EN61347-2-13, UL8750 |
| Output Voltage Options | Single |
| Working Temperature | -30~+70°C |
| PDF Datasheet | APV-12-spec.pdf |
