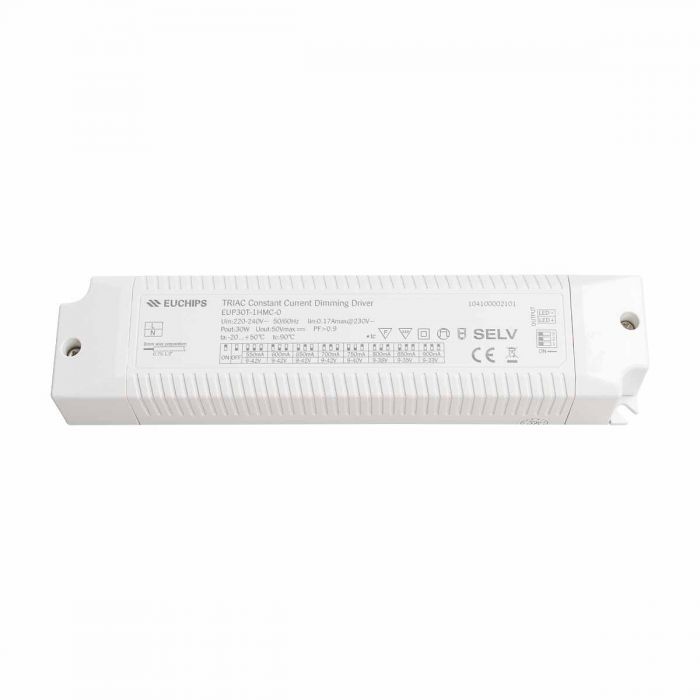

EUCHIPS Triac Dimmable Constant Current LED Driver 550mA-900mA 30W

£26.74
In stock
Part No
EUP30T-1HMC-0-S

Constant current, triac dimmable LED driver, output current level selectable by DIP switch between 500mA - 900mA

  • Support Leading edge (Triac) and Trailing edge (ELV) dimmer
  • Dimming range from 40VAC to 240VAC
  • Built-in active PFC function Class 2 power supply. Full protective plastic housing
  • Dimming effect smooth, no flicker Protections:
  • Short circuit, over load, over temperature
  • Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
More Information
Manufacturer EUCHIPS
Output Wattage (W) 30
Output Current Selectable
Dimmable (Type) Triac Leading edge & Trailing edge
Output Voltage Range (V) 9-42VDC
DC Output Adjustment No
Dimensions 185 x 42.5 x 28.5 mm
Input Voltage 220-240VAC
Safety Standards CE
Output Voltage Options Single
Working Temperature -20 - +50C
PDF Datasheet EUP30T-1HMC-0.pdf

Constant current, triac dimmable LED driver, output current level selectable by DIP switch between 500mA - 900mA

  • Support Leading edge (Triac) and Trailing edge (ELV) dimmer
  • Dimming range from 40VAC to 240VAC
  • Built-in active PFC function Class 2 power supply. Full protective plastic housing
  • Dimming effect smooth, no flicker Protections:
  • Short circuit, over load, over temperature
  • Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
