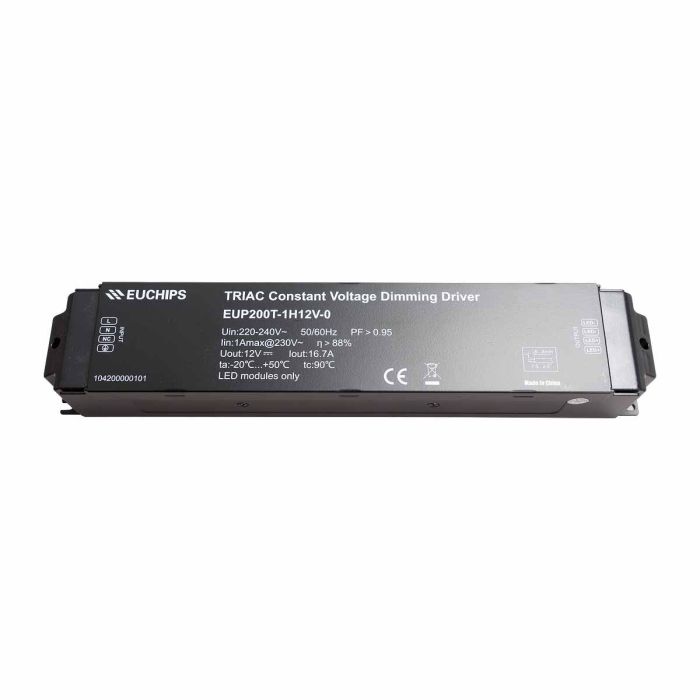

EUCHIPS EUP200T-1HV Series Mains Dimmable LED Driver 200W 12-24V
As low as
£110.40
£92.00
In stock
Part No
EUCHIPS EUP200T-1HVS
The EUCHIPS EUP200T-1HV Series LED Driver is mains dimmable, 200W and available in 12V & 24V output. Dimming is leading edge (Triac) and trailing edge (EVL).
Features
- Dimming range from 40VAC to 240V AC
- Dimming effect smooth, no flicker
- High efficiency: up to 92%
- Over current protection,Over voltage protection; Short circuit protection, over temperature protection
| Brand | EUCHIPS |
|---|---|
| Output Wattage (W) | 200 |
| Output Voltage | Choose Option |
| Dimmable (Type) | Triac Leading edge & Trailing edge |
| DC Output Adjustment | No |
| Dimensions | 310 x 60 x 45 mm |
| Input Voltage | 220-240VAC |
| Safety Standards | CE |
| Output Voltage Options | Single |
| Working Temperature | -20 ~ +50C |
| PDF Datasheet | EUP200T-1H12V-0.pdf |
