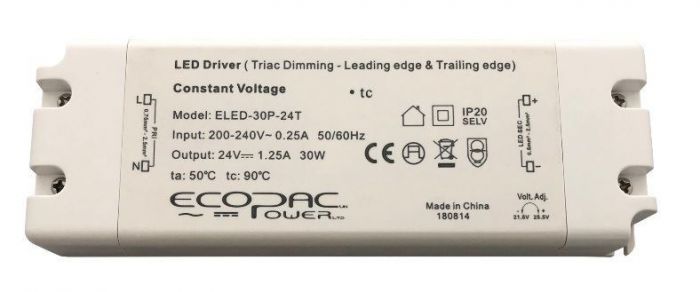

Ecopac Power ELED-30P-24T Triac Dimmable LED Driver 30W 24V
£40.02
£33.35
Out of Stock - No Date Available
Part No
ELED-30P-24T
Ecopac ELED-30P-24T constant voltage LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and trailing edge Triac dimmers.
Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-30P-24T highly reliable.
- Constant Voltage Design 24V Output
- Dimmable using leading edge & trailing edge Triac Dimmers
- PWM Output
- 3 Years warranty
- Protections: Short circuit/ Over loading/ Over current/ Over temperature
- Efficiency up to 85%
- Cooling by free air convection
- IP20 design
- Suitable for LED lighting and moving sign applications
| Brand | Ecopac Power |
|---|---|
| Output Wattage (W) | 30 |
| Output Voltage | 24V |
| Dimmable (Type) | Triac Leading edge & Trailing edge |
| Dimensions | 155x 54x 20mm |
| EMC Standards | EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 |
| Input Voltage | 180-264VAC |
| Safety Standards | EN61347-1, EN61347-2-13 |
| Output Voltage Options | Single |
| Working Temperature | -40~+60°C |
| PDF Datasheet | ELED-30P-T.pdf |
| Return period | 14 days |
