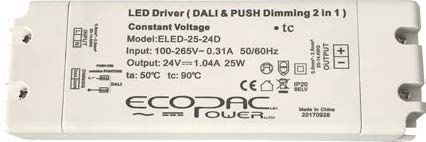

Ecopac ELED-25-D Series Dali Dimmable Constant Voltage LED Drivers 25W 12V-24V

As low as £40.74
In stock
Part No
ELED-25-D

The Ecopac Power ELED-25-D Series of DALI Dimmable LED drivers are high quality with a dimming range from 0.1% up to 100%. Short circuit and over loading protection are standard features. Constant voltage design with a choice of 12V or 24V output.

Ecopac Power LED Drivers are supplied with a 3 year warranty.

Other features:
  • DALI Dimmable
  • Dimming range: 0.1-100%
  • Universal AC input/ Full range 100-265VAC
  • Built-in active PFC function
  • 12V or 24V Constant voltage output
  • IP20 Rated
  • 3 years warranty
More Information
Manufacturer Ecopac Power
Output Wattage (W) 25
Dimmable (Type) DALI
DC Output Adjustment N/a
EMC Standards EN55015, EN61000-3-2, EN61000-4-2,3,4,5,6,11
Input Voltage 100-265VAC
Safety Standards EN61347-1,EN61347-2-13
Working Temperature -40~+60°C
PDF Datasheet ELED-25-D.pdf
