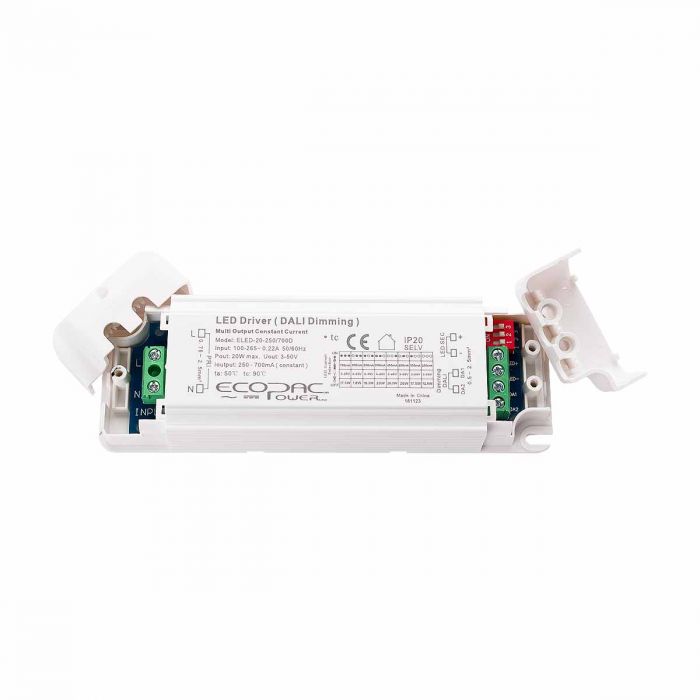

Ecopac ELED-20-250/700D Selectable Constant Current Dali Dimmable LED Driver 20W 250-700mA
£35.52
£29.60
Out of Stock - No Date Available
Only 2 left
Constant Current mode output with selectable levels 250mA - 700mA via by dip switchs
DALI dimming function
Other features:
- AC input: 100-265VAC
- Built-in active PFC function
- Efficiency up to 86%
- Protections: Short Circuit/Over load/Over temperature
- IP20 design for indoor installation
- Cooling by free air convection
- Suitable for LED lighting and moving signs
More Information| Brand | Ecopac Power |
|---|
| Output Wattage (W) | 7 |
|---|
| Output Current (mA) | 700mA |
|---|
| Dimmable (Type) | DALI |
|---|
| Dimensions | 140*45*28mm |
|---|
| EMC Standards | Compliance toEN55015,EN61000-3-2,3 (≧50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level （surge4KV） |
|---|
| Input Voltage | 100-265Vac |
|---|
| Safety Standards | EN61347-1 EN61347-2-13 IP20 |
|---|
| Output Voltage Options | Single |
|---|
| Working Temperature | -40 ~ +60°C |
|---|
| PDF Datasheet | ELED-20-250700D.pdf |
|---|
| Return period | 14 days |
|---|
Details
Constant Current mode output with selectable levels 250mA - 700mA via by dip switchs
DALI dimming function
Other features:
- AC input: 100-265VAC
- Built-in active PFC function
- Efficiency up to 86%
- Protections: Short Circuit/Over load/Over temperature
- IP20 design for indoor installation
- Cooling by free air convection
- Suitable for LED lighting and moving signs
More Information
More Information| Brand | Ecopac Power |
|---|
| Output Wattage (W) | 7 |
|---|
| Output Current (mA) | 700mA |
|---|
| Dimmable (Type) | DALI |
|---|
| Dimensions | 140*45*28mm |
|---|
| EMC Standards | Compliance toEN55015,EN61000-3-2,3 (≧50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level （surge4KV） |
|---|
| Input Voltage | 100-265Vac |
|---|
| Safety Standards | EN61347-1 EN61347-2-13 IP20 |
|---|
| Output Voltage Options | Single |
|---|
| Working Temperature | -40 ~ +60°C |
|---|
| PDF Datasheet | ELED-20-250700D.pdf |
|---|
| Return period | 14 days |
|---|
