Ecopac LED Driver ELED-45-12V 45w 12V

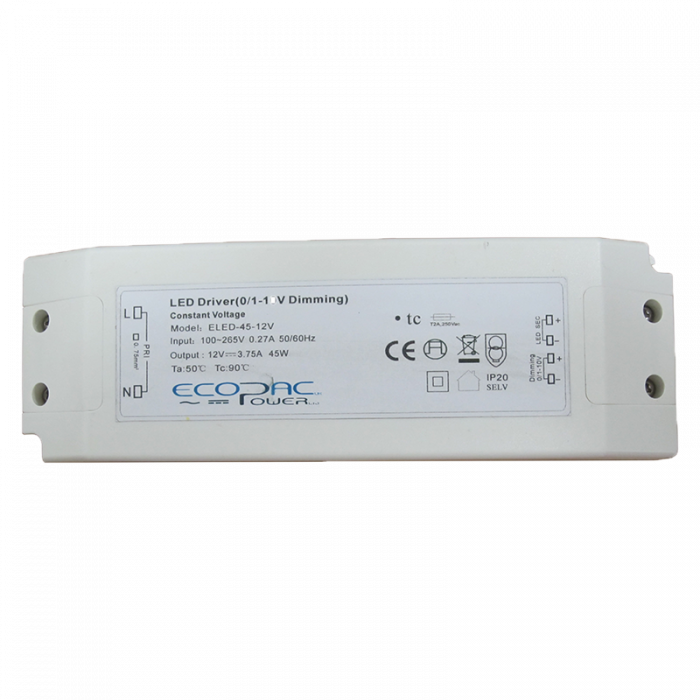

Ecopac Dimmable LED Driver ELED-45-12V 45w 12V

Ecopac ELED-45 Series LED Driver 45W 12V – 24V

Ecopac ELED-45V Series Constant Voltage LED Driver 45W 12V – 24V

Ecopac Dimmable LED Driver ELED-45-24V 45w 24V

Three in one dimming function (0/1-10Vdc or PWM signal or resistance)
Dimming range: 0-100%
Universal AC input/full range 100-265VAC
Built-in active PFC function (>0.98)
High efficiency up to 83%
Protections: Short circuit/Over current/ Over loading
Fully isolated plastic case with terminals IP20
Compliance to worldwide safety regulations for lighting

£41.47
Availability: In stock
Part No
ELED-45-24V

Three in one dimming function (0/1-10Vdc or PWM signal or resistance)
Dimming range: 0-100%
Universal AC input/full range 100-265VAC
Built-in active PFC function (>0.98)
High efficiency up to 83%
Protections: Short circuit/Over current/ Over loading
Fully isolated plastic case with terminals IP20
Compliance to worldwide safety regulations for lighting

More Information
Manufacturer Ecopac Power
Output Wattage (W) 45
Output Voltage 24V
Dimmable (Type) 1-10VDC, PWM signal, resistance
Dimensions 179x 60.4x 35.2mm
EMC Standards Compliance to EN55015, EN61000-3-2 (>50%load), Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level
Input Voltage 100-265Vac
Safety Standards EN61347-2-13, IP66
Output Voltage Options Single
Working Temperature -40~+60°C
PDF Datasheet ELED-45-V_Series_1.pdf
