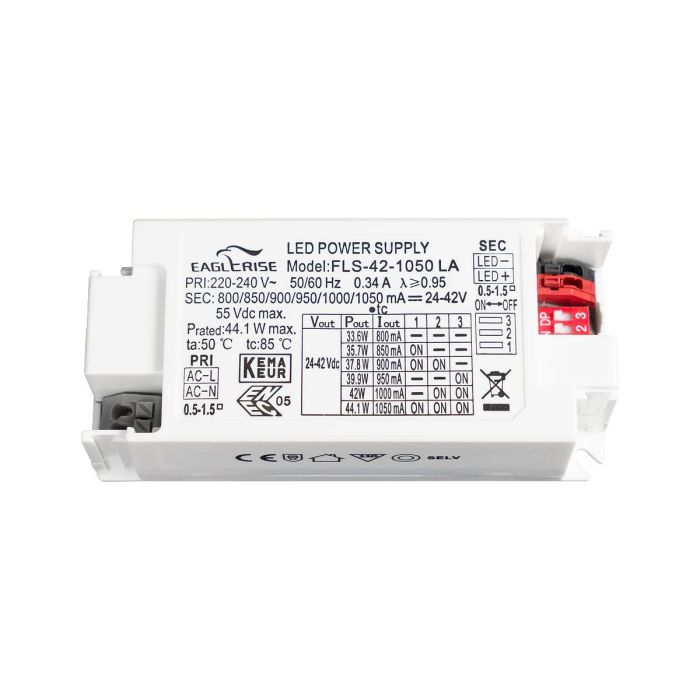

Eaglerise FLS-42-1050 LD Selectable Constant Current LED Driver

£27.60
Out of Stock - No Date Available
Part No
FLS-42-1050 LD

The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.

Features

  • Protections: short circuit/over load/over voltage
  • IP20 Rated
  • Flicker Free
  • Power Factor ≥0.95
  • Efficiency ≥86%
  • Class II, SELV
  • Current adjustment by Dip switch
  • 5 years warranty
More Information
BrandEaglerise
Output Wattage (W)40
Output Current (mA)Selectable
Dimmable (Type)No
Output Voltage Range (V)24-42VDC
DC Output AdjustmentNo
Dimensions97 x 43 x 30 mm
EMC StandardsEN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage220-240VAC
Safety StandardsEN 61347-1; EN61347-2-13
Output Voltage OptionsSingle
Working Temperature-20 ~ +50C
PDF DatasheetFLS-42-1050.pdf
Return period14 days

Details

The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.

Features

  • Protections: short circuit/over load/over voltage
  • IP20 Rated
  • Flicker Free
  • Power Factor ≥0.95
  • Efficiency ≥86%
  • Class II, SELV
  • Current adjustment by Dip switch
  • 5 years warranty

More Information

More Information
BrandEaglerise
Output Wattage (W)40
Output Current (mA)Selectable
Dimmable (Type)No
Output Voltage Range (V)24-42VDC
DC Output AdjustmentNo
Dimensions97 x 43 x 30 mm
EMC StandardsEN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage220-240VAC
Safety StandardsEN 61347-1; EN61347-2-13
Output Voltage OptionsSingle
Working Temperature-20 ~ +50C
PDF DatasheetFLS-42-1050.pdf
Return period14 days
