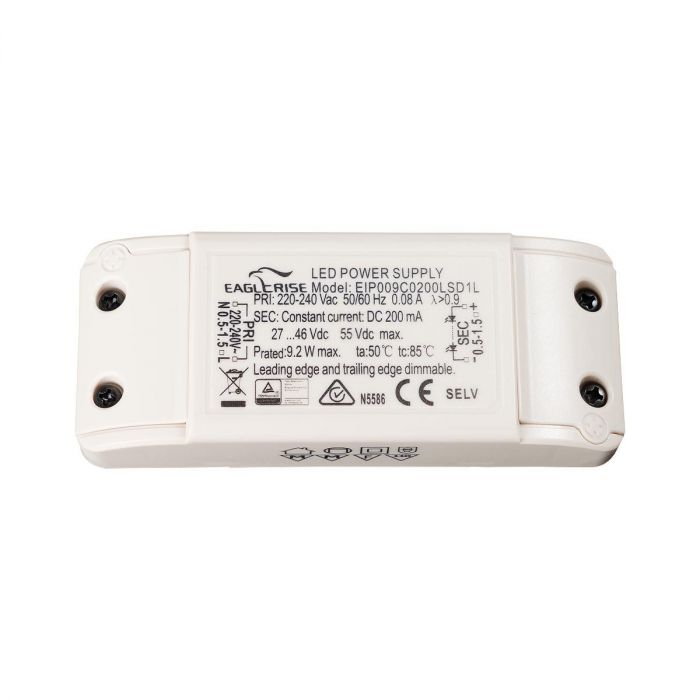

Eaglerise Constant Current Triac Dimmable LED Driver 200mA 9W

£15.60 £13.00
Out of Stock - No Date Available
Part No
EIP009C0200LSD1L

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W

Features

  • Short circuit, over load, over voltage & over temperature protection
  • IP20 rated
  • Power Factor ≥0.9
  • Efficiency ≥78%
  • Class II, SELV
  • Leading edge & trailing edge dimmable
  • 5 Year Warranty
More Information
BrandEaglerise
Output Wattage (W)9
Output Current (mA)200mA
Dimmable (Type)Triac Leading edge & Trailing edge
DC Output AdjustmentNo
Dimensions105 x 42 x 24 mm
EMC StandardsEN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage220-240VAC
Safety StandardsEN 61347-1; EN61347-2-13
Output Voltage OptionsSingle
Working Temperature-10 ~ +50C
PDF DatasheetEIP009CxxxxLSD1L.pdf
Return period14 days
Frequently Bought Together

Details

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W

Features

  • Short circuit, over load, over voltage & over temperature protection
  • IP20 rated
  • Power Factor ≥0.9
  • Efficiency ≥78%
  • Class II, SELV
  • Leading edge & trailing edge dimmable
  • 5 Year Warranty

More Information

More Information
BrandEaglerise
Output Wattage (W)9
Output Current (mA)200mA
Dimmable (Type)Triac Leading edge & Trailing edge
DC Output AdjustmentNo
Dimensions105 x 42 x 24 mm
EMC StandardsEN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage220-240VAC
Safety StandardsEN 61347-1; EN61347-2-13
Output Voltage OptionsSingle
Working Temperature-10 ~ +50C
PDF DatasheetEIP009CxxxxLSD1L.pdf
Return period14 days
