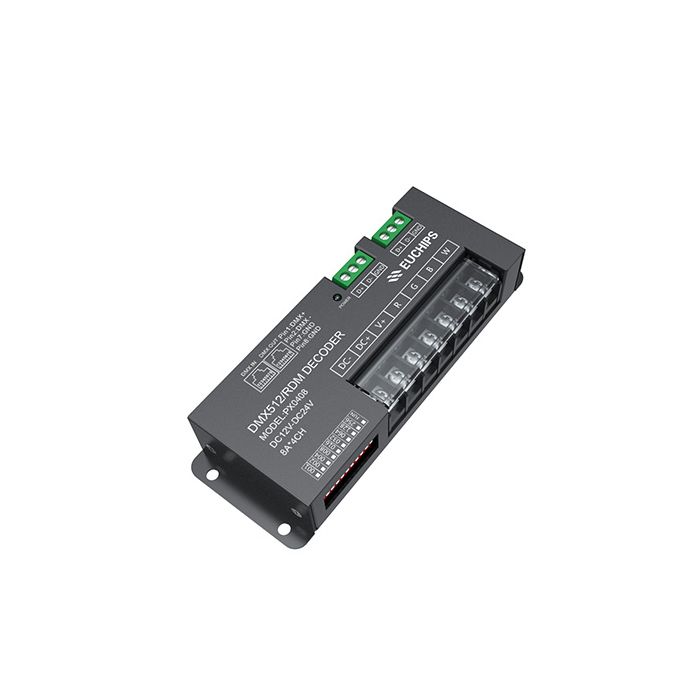

DMX512/RDM RGBW Decoder

£25.20
In stock
Part No
PX0408

PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Technical

  • Output Channels 1-4
  • Output Voltage 12-24 VDC
  • Output Current 8A*4CH
  • Output Power 384W(12V) / 768W(24V)
  • Input Voltage 12-24VDC
  • Standy Loss <1W
  • Control Signal DMX512 1990/RDM 2009
  • Dimensions 140x50x26mm
More Information
PDF Datasheet PX0408.pdf
