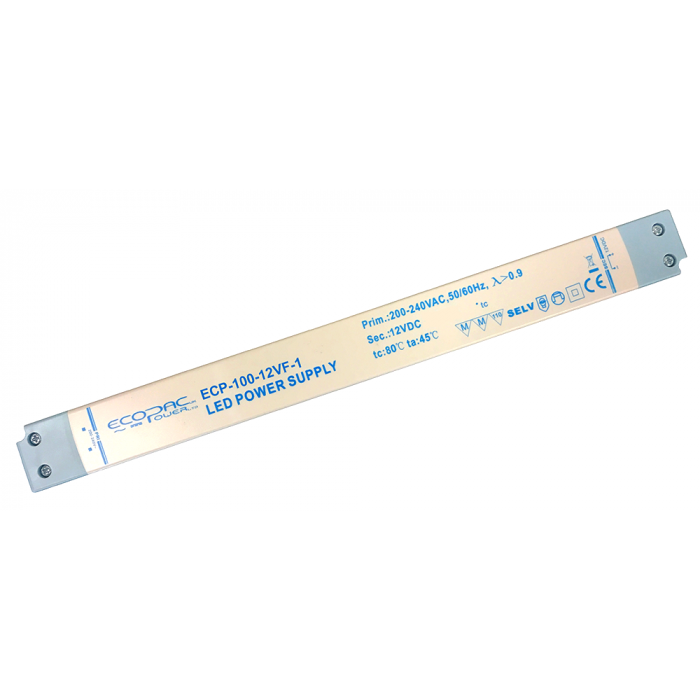

Ecopac ECP100-12VF-1 Slimline Constant Voltage LED Driver 100W 12V
£54.40
£45.33
Out of stock
Part No
ECP100-12VF-1-2
The Ecopac Power ECP100-24VF-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features.
Ecopac Power LED Drivers are supplied with a 3 year warranty.
Other features:- Slim line LED Driver
- Universal AC input/ Full range 180-264VAC
- Input Frequency 50/60Hz
- 24V Constant voltage output
- 3 years warranty
| Brand | Ecopac Power |
|---|---|
| Output Wattage (W) | 100 |
| Output Voltage | 12V |
| Dimmable (Type) | No |
| DC Output Adjustment | N/a |
| Dimensions | 320.6x 26.8x 18.2 (LxWxH) mm |
| EMC Standards | EN55015, EN61000-3-2; EN61000-3-3; EN61547 |
| Input Voltage | 180-264VAC |
| Safety Standards | EN61347-1,EN61347-2-13 |
| Working Temperature | -20~+45°C | PDF Datasheet | ECP-100-VF-1.pdf |
